3.1.1 Fetching Host-meta

SZTPD inherits how to fetch host-meta from YANGcore. Please see the “Fetching Host-meta” section in the YANGcore User Guide for details.

SZTPD’s host-meta is the same as YANGcore’s host-meta.

3.1.2 Fetching the RESTCONF Root Resource

SZTPD inherits how to fetch the RESTCONF root resource from YANGcore. Please see the “Fetching the RESTCONF Root Resource” section in the YANGcore User Guide for details.

SZTPD’s Root Resource is the same as YANGcore’s Root Resource (i.e., “/restconf”).

3.1.3 Fetching the YANG Library

SZTPD inherits how to fetch the YANG Library from YANGcore. Please see the “Fetching the YANG Library” section in the YANGcore User Guide for details.

SZTPD’s YANG Library is a superset of the YANGcore YANG Library. A full listing of the SZTPD’s YANG Library is in NBI YANG Library.

3.1.4 Get the Default Configuration

SZTPD inherits how to get the default configuration from YANGcore.
Please see the “Get the Default Configuration” section in the YANGcore User Guide for details.

SZTPD’s default configuration is the same as YANGcore’s default configuration.

3.1.5 Configure a User

SZTPD inherits how to configure users from YANGcore. Please see the “Configure a User” section in the YANGcore User Guide for details.

SZTPD does not modify any aspect of YANGcore’s authentication or authorization mechanisms.

3.2.1 Set Baseline Configuration

As is described in the YANGcore User’s Guide, using individual commands, such as described above, can be tedious. In general, RESTCONF allows any node in the data tree to be replaced, i.e., with a PUT command. This ability applies to the root ‘/’ node as well and, in so using, enables the whole configuration to be set in a single command.

This example illustrate the whole configuration being set using a single PUT command. The goal of this configuration is to quickly set a baseline for subsequent examples. This baseline:

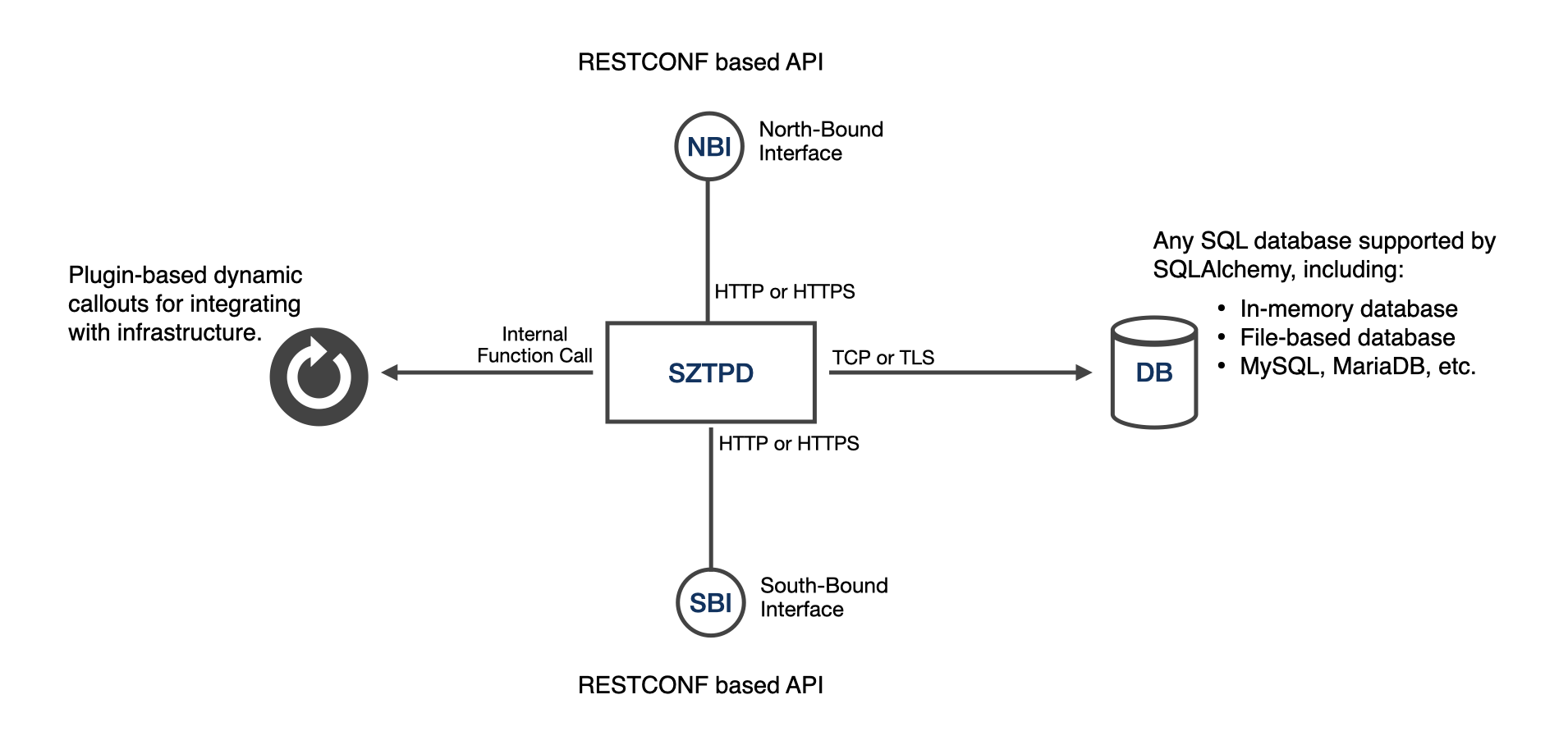

• configures TLS on both the NBI and SBI, using keys placed in the Keystore.
• puts a trust anchor into the Truststore to validate bootstrapping devices.
• defines a device type that defines how to validate bootstrapping device certificates.
• defines a device for the aforementioned device-type and defines an authentication code.

Be mindful that, s described in the YANGcore User Guide, because this request modifies the server’s interfaces, the server will be momentarily unavailable while it restarts.

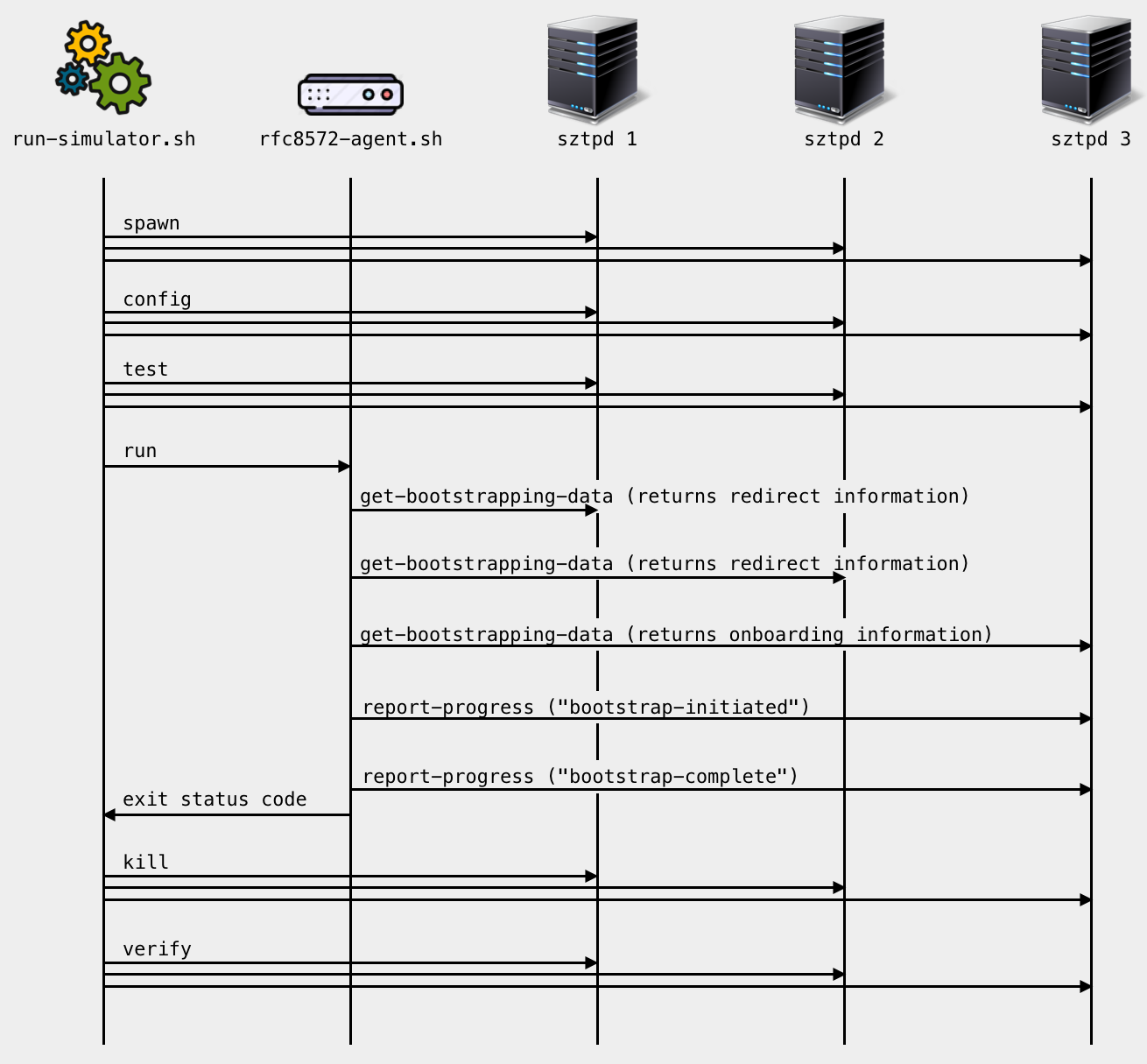

For running code, please see the Simulator code.

This section uses scripts to generate its contents. These scripts use a PKI that has been instantiated as “pki” in the current directory. This ‘pki’ directory is the same as that in the Simulator code. These scripts could be run out of that directory, after creating an empty directory called “output”.

Request:

=================================== NOTE: '\' line wrapping per RFC 8792 ===================================

#!/bin/bash

TEMPDIR=`mktemp -d`

# NBI Port
NBI_PORT=8443
NBI_PRI_KEY_B64=`openssl enc -base64 -A -in pki/sztpd1/nbi/end-entity/private_key.der`
NBI_PUB_KEY_B64=`openssl enc -base64 -A -in pki/sztpd1/nbi/end-entity/public_key.der`
cat pki/sztpd1/nbi/end-entity/my_cert.pem pki/sztpd1/nbi/intermediate2/my_cert.pem > $TEMPDIR/cert_chain.pem
openssl crl2pkcs7 -nocrl -certfile $TEMPDIR/cert_chain.pem -outform DER -out $TEMPDIR/cert_chain.cms
NBI_EE_CERT_B64=`openssl enc -base64 -A -in $TEMPDIR/cert_chain.cms`

# SBI Port
SBI_PORT=9443
SBI_PRI_KEY_B64=`openssl enc -base64 -A -in pki/sztpd1/sbi/end-entity/private_key.der`
SBI_PUB_KEY_B64=`openssl enc -base64 -A -in pki/sztpd1/sbi/end-entity/public_key.der`
cat pki/sztpd1/sbi/end-entity/my_cert.pem pki/sztpd1/sbi/intermediate2/my_cert.pem > $TEMPDIR/cert_chain.pem
openssl crl2pkcs7 -nocrl -certfile $TEMPDIR/cert_chain.pem -outform DER -out $TEMPDIR/cert_chain.cms
SBI_EE_CERT_B64=`openssl enc -base64 -A -in $TEMPDIR/cert_chain.cms`

# client cert (DevID) trust anchor
cat pki/client/root-ca/my_cert.pem pki/client/intermediate1/my_cert.pem pki/client/intermediate2/my_cert.pe\
m  > $TEMPDIR/ta_cert_chain.pem
openssl crl2pkcs7 -nocrl -certfile $TEMPDIR/ta_cert_chain.pem -outform DER -out $TEMPDIR/ta_cert_chain.cms
CLIENT_CERT_TA_B64=`openssl enc -base64 -A -in $TEMPDIR/ta_cert_chain.cms`

# initialize body for the PUT request
cat << EOM > $TEMPDIR/running.json
{
    "ietf-restconf-server:restconf-server": {
        "listen": {
            "endpoints": {
                "endpoint": [
                    {
                        "name": "native-interface",
                        "yangcore:use-for": "yangcore:native-interface",
                        "https": {
                            "tcp-server-parameters": {
                                "local-bind": [
                                    {
                                        "local-address": "127.0.0.1",
                                        "local-port": $NBI_PORT
                                    }
                                ]
                            },
                            "tls-server-parameters": {
                                "server-identity": {
                                    "certificate" : {
                                        "central-keystore-reference": {
                                            "asymmetric-key": "nbi-server-end-entity-key",
                                            "certificate": "nbi-server-end-entity-cert"
                                        }
                                    }
                                }
                            }
                        }
                    },
                    {
                        "name": "rfc8572-interface",
                        "yangcore:use-for": "sztpd:rfc8572-interface",
                        "https": {
                            "tcp-server-parameters": {
                                "local-bind": [
                                    {
                                        "local-address": "127.0.0.1",
                                        "local-port": $SBI_PORT
                                    }
                                ]
                            },
                            "tls-server-parameters": {
                                "server-identity": {
                                    "certificate" : {
                                        "central-keystore-reference": {
                                            "asymmetric-key": "sbi-server-end-entity-key",
                                            "certificate": "sbi-server-end-entity-cert"
                                        }
                                    }
                                },
                                "client-authentication": {
                                  "ca-certs": {
                                    "central-truststore-reference": "my-device-identity-ca-certs"
                                  }
                                }
                            }
                        }
                    }
                ]
            }
        }
    },
    "yangcore:preferences": {
        "authentication": {
            "internal-authenticator": {
                "passwords-allowed": {}
            }
        }
    },
    "yangcore:users": {
        "user": [
            {
                "login": "my-admin",
                "email-address": "my-admin@example.com",
                "authentication": {
                    "password-based": {
                        "password": "\$0\$my-secret"
                    }
                },
                "authorization": {
                    "unrestricted": [null]
                }
            }
        ]
    },
    "ietf-keystore:keystore": {
        "asymmetric-keys": {
            "asymmetric-key": [
                {
                    "name": "nbi-server-end-entity-key",
                    "public-key-format": "ietf-crypto-types:subject-public-key-info-format",
                    "public-key": "$NBI_PUB_KEY_B64",
                    "private-key-format": "ietf-crypto-types:ec-private-key-format",
                    "cleartext-private-key": "$NBI_PRI_KEY_B64",
                    "certificates": {
                        "certificate": [
                            {
                                "name": "nbi-server-end-entity-cert",
                                "cert-data": "$NBI_EE_CERT_B64"
                            }
                        ]
                    }
                },
                {
                    "name": "sbi-server-end-entity-key",
                    "public-key-format": "ietf-crypto-types:subject-public-key-info-format",
                    "public-key": "$SBI_PUB_KEY_B64",
                    "private-key-format": "ietf-crypto-types:ec-private-key-format",
                    "cleartext-private-key": "$SBI_PRI_KEY_B64",
                    "certificates": {
                        "certificate": [
                            {
                                "name": "sbi-server-end-entity-cert",
                                "cert-data": "$SBI_EE_CERT_B64"
                            }
                        ]
                    }
                }
            ]
        }
    },
    "ietf-truststore:truststore": {
        "certificate-bags": {
            "certificate-bag": [
                {
                    "name": "my-device-identity-ca-certs",
                    "description": "A set of TA certs used to authenticate device client certs.",
                    "certificate": [
                        {
                            "name": "my-device-identity-ca-cert-circa-2020",
                            "cert-data": "$CLIENT_CERT_TA_B64"
                        }
                    ]
                }
            ]
        }
    },
    "sztpd:device-types": {
        "device-type": [
            {
                "name": "my-device-type",
                "identity-certificates": {
                    "verification": {
                        "central-truststore-reference": {
                            "certificate-bag": "my-device-identity-ca-certs",
                            "certificate": "my-device-identity-ca-cert-circa-2020"
                        }
                    },
                    "serial-number-extraction": "wn-x509-c2n:serial-number"
                }
            }
        ]
    },
    "sztpd:devices": {
        "device": [
            {
                "serial-number": "my-serial-number",
                "device-type": "my-device-type",
                "activation-code": "\$0\$my-secret"
            }
        ]
    },
    "sztpd:conveyed-information": {
    }
}
EOM

# PUT running
curl -isf -X PUT --data @$TEMPDIR/running.json -H "Content-Type:application/yang-data+json" http://127.0.0.\
1:8080/restconf/ds/ietf-datastores:running > output/put_whole_config.out
if [[ $? != 0 ]]; then
  echo "curl returned an error"
  exit 1
fi

# remove temp dir
rm -rf "$TEMPDIR"

Response:

HTTP/1.1 204 No Content
Date: Wed, 22 Jan 2025 07:16:17 GMT
Server: <redacted>

3.2.2 Give Server time to restart

Since this change modifies the “/restconf-server” tree, the SZTPD instance sends a SIGHUP to itself, thus causing it to reload the configuration and re-open listening ports per configuration.

SZTPD takes a few seconds to reload with a relatively empty configuration. Once sufficient time has elapsed (a few seconds), the configured ports will be available.

3.2.3 Simulate Device Trying to Get Bootstrapping Data

This example illustrates the response given to a bootstraping device before it has been configured to return a specific kind of response.

This command fails because no “responses” have been configured for the device on the server. Note that error code 404 is used to indicate that the device may try again.

One thing new/interesting about this example is that it uses XML. The SBI supports both JSON and XML.

Request:

=================================== NOTE: '\' line wrapping per RFC 8792 ===================================

#!/bin/sh

# get a temp dir
TEMPDIR=`mktemp -d`

# initialize the 'input' node for the RPC
cat << EOM > $TEMPDIR/input.xml
<input xmlns="urn:ietf:params:xml:ns:yang:ietf-sztp-bootstrap-server">
    <hw-model>model-x</hw-model>
    <os-name>vendor-os</os-name>
    <os-version>17.3R2.1</os-version>
    <nonce>BASE64VALUE=</nonce>
</input>
EOM

# POST 'input' for the "get-bootstrapping-data" RPC resource
curl -isf -X POST --data @$TEMPDIR/input.xml -H "Content-Type:application/yang-data+xml" -H "Accept:applica\
tion/yang-data+xml" --cacert sbi_trust_chain.pem --key pki/client/end-entity/private_key.pem --cert pki/cli\
ent/end-entity/my_cert.pem --user my-serial-number:my-secret https://127.0.0.1:9443/restconf/operations/iet\
f-sztp-bootstrap-server:get-bootstrapping-data > output/rpc_get_bootstrapping_data_1.out

if [[ $? == 0 ]]; then
  echo "curl succeeded?!"
  exit 1
fi

# line-return needed for markdown
echo "" >> output/rpc_get_bootstrapping_data_1.out

# remove temp dir
rm -rf $TEMPDIR

Response:

HTTP/1.1 404 Not Found
Content-Type: application/yang-data+xml; charset=utf-8
Content-Length: 359
Date: Wed, 22 Jan 2025 07:16:22 GMT
Server: <redacted>

3.3.1 Defining a Bootstrap Server

Request:

=================================== NOTE: '\' line wrapping per RFC 8792 ===================================

#!/bin/sh

# get a temp dir
TEMPDIR=`mktemp -d`

# generate values for placeholders
cat pki/sztpd2/sbi/root-ca/my_cert.pem pki/sztpd2/sbi/intermediate1/my_cert.pem > cert_chain.pem
openssl crl2pkcs7 -nocrl -certfile cert_chain.pem -outform DER -out cert_chain.cms
BOOTSVR_TA_CERT_B64=`openssl enc -base64 -A -in  cert_chain.cms`

# initialize body for the POST request
cat << EOM > $TEMPDIR/bootstrap-servers.json
{
    "sztpd:bootstrap-servers": {
        "bootstrap-server": [
            {
                "name": "my-bootstrap-server",
                "address": "127.0.0.1",
                "port": 9443,
                "trust-anchor": "$BOOTSVR_TA_CERT_B64"
            }
        ]
    }
}
EOM

# POST 'bootstrap-servers' to running
curl -isf -X POST --data @$TEMPDIR/bootstrap-servers.json -H "Content-Type:application/yang-data+json" --ca\
cert nbi_trust_chain.pem --user my-admin:my-secret https://127.0.0.1:8443/restconf/ds/ietf-datastores:runni\
ng/sztpd:conveyed-information > output/post_bootstrap_servers.out
if [[ $? != 0 ]]; then
  echo "curl returned an error"
  exit 1
fi

# remove temp dir
rm -rf $TEMPDIR

Response:

HTTP/1.1 201 Created
Content-Length: 0
Date: Wed, 22 Jan 2025 07:16:23 GMT
Server: <redacted>

3.3.2 Defining a Redirect Response

Configure the ‘/responses’ node. Configure a ‘redirect-response’ indicating that the device is to be redirected to ‘my-bootstrap-server’. Whilst this example shows just one bootstrap-server listed, an ordered list of bootstrap servers may be configured.

Request:

=================================== NOTE: '\' line wrapping per RFC 8792 ===================================

#!/bin/sh

# get a temp dir
TEMPDIR=`mktemp -d`

# initialize body for the POST request
cat << EOM > $TEMPDIR/responses.json
{
    "sztpd:responses": {
        "redirect-response": [
            {
                "name": "my-redirect-information",
                "redirect-information": {
                    "bootstrap-server": [
                        "my-bootstrap-server"
                    ]
                }
            }
        ]
    }
}
EOM

# POST 'responses' to running
curl -isf -X POST --data @$TEMPDIR/responses.json -H "Content-Type:application/yang-data+json" --cacert nbi\
_trust_chain.pem --user my-admin:my-secret https://127.0.0.1:8443/restconf/ds/ietf-datastores:running > out\
put/post_responses.out
if [[ $? != 0 ]]; then
  echo "curl returned an error"
  exit 1
fi

# remove temp dir
rm -rf $TEMPDIR

Response:

HTTP/1.1 201 Created
Content-Length: 0
Date: Wed, 22 Jan 2025 07:16:23 GMT
Server: <redacted>

3.3.3 Configuring Device to Return the Redirect Response

Configure the ‘response-manager’ node inside the ‘my-serial-number’ device object to return the “my-redirect-information” respsonse. Note that a catch-all rule (i.e., one without any ‘match-criteria’ defined) tells STZPD to always return this response to this device.

Request:

=================================== NOTE: '\' line wrapping per RFC 8792 ===================================

#!/bin/sh

# get a temp dir
TEMPDIR=`mktemp -d`

# initialize body for the POST request
cat << EOM > $TEMPDIR/response-manager.json
{
    "sztpd:response-manager": {
        "matched-response": [
            {
                "name": "catch-all-response",
                "response": {
                    "conveyed-information": {
                        "via-redirect-response": {
                            "reference": "my-redirect-information"
                        }
                    }
                }
            }
        ]
    }
}
EOM

# POST 'response-manager' to *device*
curl -isf -X POST --data @$TEMPDIR/response-manager.json -H "Content-Type:application/yang-data+json" --cac\
ert nbi_trust_chain.pem --user my-admin:my-secret https://127.0.0.1:8443/restconf/ds/ietf-datastores:runnin\
g/sztpd:devices/device=my-serial-number > output/post_response_manager.out
if [[ $? != 0 ]]; then
  echo "curl returned an error"
  exit 1
fi

# remove temp dir
rm -rf $TEMPDIR

Response:

HTTP/1.1 201 Created
Content-Length: 0
Date: Wed, 22 Jan 2025 07:16:23 GMT
Server: <redacted>

3.3.4 Simulate Device Getting Redirect Information

Accessing the ‘get-bootstrapping-data’ RPC on the SBI again, now it works. Note that the SBI supports both JSON and XML.

Request:

=================================== NOTE: '\' line wrapping per RFC 8792 ===================================

#!/bin/sh

# get a temp dir
TEMPDIR=`mktemp -d`

# initialize the 'input' node for the RPC
cat << EOM > $TEMPDIR/input.xml
<input xmlns="urn:ietf:params:xml:ns:yang:ietf-sztp-bootstrap-server">
    <hw-model>model-x</hw-model>
    <os-name>vendor-os</os-name>
    <os-version>17.3R2.1</os-version>
    <nonce>BASE64VALUE=</nonce>
</input>
EOM

# POST 'input' for the "get-bootstrapping-data" RPC resource
curl -isf -X POST --data @$TEMPDIR/input.xml -H "Content-Type:application/yang-data+xml" -H "Accept:applica\
tion/yang-data+xml" --cacert sbi_trust_chain.pem --key pki/client/end-entity/private_key.pem --cert pki/cli\
ent/end-entity/my_cert.pem --user my-serial-number:my-secret https://127.0.0.1:9443/restconf/operations/iet\
f-sztp-bootstrap-server:get-bootstrapping-data > output/rpc_get_bootstrapping_data_2.out

if [[ $? != 0 ]]; then
  echo "curl returned an error"
  exit 1
fi

# line-return needed for markdown
echo "" >> output/rpc_get_bootstrapping_data_2.out

# remove temp dir
rm -rf $TEMPDIR

Response:

=================================== NOTE: '\' line wrapping per RFC 8792 ===================================

HTTP/1.1 200 OK
Content-Type: application/yang-data+xml; charset=utf-8
Content-Length: 2845
Date: Wed, 22 Jan 2025 07:16:23 GMT
Server: <redacted>

<?xml version="1.0" ?>
<output xmlns="urn:ietf:params:xml:ns:yang:ietf-sztp-bootstrap-server">
  <conveyed-information>MIIH3wYLKoZIhvcNAQkQASqgggfOBIIHyjw/eG1sIHZlcnNpb249IjEuMCIgPz4KPHJlZGlyZWN0LWluZm9\
ybWF0aW9uIHhtbG5zPSJ1cm46aWV0ZjpwYXJhbXM6eG1sOm5zOnlhbmc6aWV0Zi1zenRwLWNvbnZleWVkLWluZm8iPgogIDxib290c3RyYX\
Atc2VydmVyPgogICAgPGFkZHJlc3M+MTI3LjAuMC4xPC9hZGRyZXNzPgogICAgPHBvcnQ+OTQ0MzwvcG9ydD4KICAgIDx0cnVzdC1hbmNob\
3I+TUlJRkR3WUpLb1pJaHZjTkFRY0NvSUlGQURDQ0JQd0NBUUV4QURBTEJna3Foa2lHOXcwQkJ3R2dnZ1RrTUlJQ1dqQ0NBZitnQXdJQkFn\
SUJBVEFLQmdncWhrak9QUVFEQWpCMU1Rc3dDUVlEVlFRR0V3SllXREVkTUJzR0ExVUVDQXdVVFhrZ1UzUmhkR1VnYjNJZ1VISnZkbWx1WTJ\
VeEdEQVdCZ05WQkFvTUQwMTVJRTl5WjJGdWFYcGhkR2x2YmpFUU1BNEdBMVVFQ3d3SFRYa2dWVzVwZERFYk1Ca0dBMVVFQXd3U2MySnBMM0\
5sY25abGNpOXliMjkwTFdOaE1DQVhEVEkxTURFeU1qQTNNVFl4TVZvWUR6azVPVGt4TWpNeE1qTTFPVFU1V2pCMU1Rc3dDUVlEVlFRR0V3S\
llXREVkTUJzR0ExVUVDQXdVVFhrZ1UzUmhkR1VnYjNJZ1VISnZkbWx1WTJVeEdEQVdCZ05WQkFvTUQwMTVJRTl5WjJGdWFYcGhkR2x2YmpF\
UU1BNEdBMVVFQ3d3SFRYa2dWVzVwZERFYk1Ca0dBMVVFQXd3U2MySnBMM05sY25abGNpOXliMjkwTFdOaE1Ga3dFd1lIS29aSXpqMENBUVl\
JS29aSXpqMERBUWNEUWdBRUxlVnNTMURCRkJXNENhRmVIRy9lNHo2VEd5dEJBYkt5QXhPamRyVUJyMG45RjZiUjhhVUxzMFdteE5XcWZIdk\
01dmx0bTY0ZXZSOWtORnYyUGxYcXJhTitNSHd3SFFZRFZSME9CQllFRkt2eEU3VC9LbmlhSnlJT1hBM2djVFJJOXhNUk1Bd0dBMVVkRXdRR\
k1BTUJBZjh3RGdZRFZSMFBBUUgvQkFRREFnRUdNRDBHQTFVZEh3UTJNRFF3TXFBd29DNkdMR2gwZEhBNkx5OWpjbXd1WlhoaGJYQnNaUzVq\
YjIwL1kyRTljMkpwT25ObGNuWmxjanB5YjI5MExXTmhNQW9HQ0NxR1NNNDlCQU1DQTBrQU1FWUNJUURKbEx3ZWM5eXZFMkFNQVh0cjdySFQ\
ydEtkM1l4Rmw1S1VrSzllTW5IY1N3SWhBSmVEQmgvNlFDQTVvY2tBN21ZUUp4dkVraFd3NWlJTlJQenVBSEYrcFNjUE1JSUNnakNDQWlpZ0\
F3SUJBZ0lCQWpBS0JnZ3Foa2pPUFFRREFqQjFNUXN3Q1FZRFZRUUdFd0pZV0RFZE1Cc0dBMVVFQ0F3VVRYa2dVM1JoZEdVZ2IzSWdVSEp2Z\
G1sdVkyVXhHREFXQmdOVkJBb01EMDE1SUU5eVoyRnVhWHBoZEdsdmJqRVFNQTRHQTFVRUN3d0hUWGtnVlc1cGRERWJNQmtHQTFVRUF3d1Nj\
MkpwTDNObGNuWmxjaTl5YjI5MExXTmhNQ0FYRFRJMU1ERXlNakEzTVRZeE1Wb1lEems1T1RreE1qTXhNak0xT1RVNVdqQjdNUXN3Q1FZRFZ\
RUUdFd0pZV0RFZE1Cc0dBMVVFQ0F3VVRYa2dVM1JoZEdVZ2IzSWdVSEp2ZG1sdVkyVXhHREFXQmdOVkJBb01EMDE1SUU5eVoyRnVhWHBoZE\
dsdmJqRVFNQTRHQTFVRUN3d0hUWGtnVlc1cGRERWhNQjhHQTFVRUF3d1ljMkpwTDNObGNuWmxjaTlwYm5SbGNtMWxaR2xoZEdVeE1Ga3dFd\
1lIS29aSXpqMENBUVlJS29aSXpqMERBUWNEUWdBRXRrWGVCcE05bVlGeXZ0RkZiYkJ5a0cvVXJOcmJYREdrZGJ5U1R1bWxzaWNTQ056UGVh\
K0ZWVWNDaDF4Q2cxVkFxMm5pL05WZnF6TVA4WjlFUEQ0Q1pLT0JvRENCblRBZEJnTlZIUTRFRmdRVWlvUDcxV3greVljNm9RaVE4MDByWDd\
BY2M5d3dId1lEVlIwakJCZ3dGb0FVcS9FVHRQOHFlSm9uSWc1Y0RlQnhORWozRXhFd0RBWURWUjBUQkFVd0F3RUIvekFPQmdOVkhROEJBZj\
hFQkFNQ0FRWXdQUVlEVlIwZkJEWXdOREF5b0RDZ0xvWXNhSFIwY0RvdkwyTnliQzVsZUdGdGNHeGxMbU52YlQ5allUMXpZbWs2YzJWeWRtV\
nlPbkp2YjNRdFkyRXdDZ1lJS29aSXpqMEVBd0lEU0FBd1JRSWhBTi94ZDhpbDFMVTh2SzRVbktFVGU3UmFQTVlZd2dPUmY3Qld1Y1ljcUpw\
WkFpQjZ2eUNJNnJwUG9Ic0Z4dFJqYmJ1QmlFSFdMQkNFVkFBVjF0Sll6b3ZPTkRFQTwvdHJ1c3QtYW5jaG9yPgogIDwvYm9vdHN0cmFwLXN\
lcnZlcj4KPC9yZWRpcmVjdC1pbmZvcm1hdGlvbj4K</conveyed-information>
</output>

3.3.5 Delete Redirect Information

Now delete the configuration from the previous three steps to get back to clean baseline, in preparation for the upcoming [Configuring an Onboarding Response] section.

Note that the configuration is removed in the reverse order to avoid SZTPD throwing a validation error due to dangling references.

Request:

=================================== NOTE: '\' line wrapping per RFC 8792 ===================================

#!/bin/sh

# These are removed in opposite order to avoid dangling reference validation errors.

curl -isf -X DELETE --cacert nbi_trust_chain.pem --user my-admin:my-secret https://127.0.0.1:8443/restconf/\
ds/ietf-datastores:running/sztpd:devices/device=my-serial-number/response-manager > output/delete_redirect_\
info.out
if [[ $? != 0 ]]; then
  echo "curl returned an error"
  exit 1
fi

curl -isf -X DELETE --cacert nbi_trust_chain.pem --user my-admin:my-secret https://127.0.0.1:8443/restconf/\
ds/ietf-datastores:running/sztpd:responses >> output/delete_redirect_info.out
if [[ $? != 0 ]]; then
  echo "curl returned an error"
  exit 1
fi

curl -isf -X DELETE --cacert nbi_trust_chain.pem --user my-admin:my-secret https://127.0.0.1:8443/restconf/\
ds/ietf-datastores:running/sztpd:conveyed-information/bootstrap-servers >> output/delete_redirect_info.out
if [[ $? != 0 ]]; then
  echo "curl returned an error"
  exit 1
fi

Response:

HTTP/1.1 204 No Content
Date: Wed, 22 Jan 2025 07:16:23 GMT
Server: <redacted>

HTTP/1.1 204 No Content
Date: Wed, 22 Jan 2025 07:16:23 GMT
Server: <redacted>

HTTP/1.1 204 No Content
Date: Wed, 22 Jan 2025 07:16:23 GMT
Server: <redacted>

3.4.1 Defining a Boot Image

First configure information about a hypothetical “boot-image.img” the device should be running:

Request:

=================================== NOTE: '\' line wrapping per RFC 8792 ===================================

#!/bin/sh

# get a temp dir
TEMPDIR=`mktemp -d`

# initialize body for the POST request
dd if=/dev/urandom of=$TEMPDIR/my-boot-image.img bs=64k count=1 >> /dev/null 2>&1
BOOT_IMG_HASH_VAL=`openssl dgst -sha256 -c $TEMPDIR/my-boot-image.img | awk '{print $2}'`

cat << EOM > $TEMPDIR/boot-images.json
{
    "sztpd:boot-images": {
        "boot-image": [
            {
                "name": "my-boot-image.img",
                "os-name": "FooBarOS",
                "os-version": "1.2.3",
                "download-uri": [ "https://example.com/my-boot-image.img" ],
                "image-verification": [
                    {
                        "hash-algorithm": "ietf-sztp-conveyed-info:sha-256",
                        "hash-value": "$BOOT_IMG_HASH_VAL"
                    }
                ]
            }
        ]
    }
}
EOM

# POST 'boot-images' to running
curl -isf -X POST --data @$TEMPDIR/boot-images.json -H "Content-Type:application/yang-data+json" --cacert n\
bi_trust_chain.pem --user my-admin:my-secret https://127.0.0.1:8443/restconf/ds/ietf-datastores:running/szt\
pd:conveyed-information > output/post_boot_images.out
if [[ $? != 0 ]]; then
  echo "curl returned an error"
  exit 1
fi

# remove temp dir
rm -rf $TEMPDIR

Response:

HTTP/1.1 201 Created
Content-Length: 0
Date: Wed, 22 Jan 2025 07:16:24 GMT
Server: <redacted>

3.4.2 Defining Pre- and Post- Configuration Scripts

Configure information about the “pre” and “post” scripts the device should run. This example shows the scripts are ‘bash’ scripts, but the scripts may be any executable supported by the bootstrapping device.

Request:

=================================== NOTE: '\' line wrapping per RFC 8792 ===================================

#!/bin/sh

# get a temp dir
TEMPDIR=`mktemp -d`

# encode a pre-configuration script
cat << EOM > $TEMPDIR/my-pre-configuration-script
#/bin/bash
echo "inside the pre-configuration-script..."
EOM
PRE_SCRIPT_B64=`openssl enc -base64 -A -in $TEMPDIR/my-pre-configuration-script`

# encode a post-configuration script
cat << EOM > $TEMPDIR/my-post-configuration-script
#/bin/bash
echo "inside the post-configuration-script..."
EOM
POST_SCRIPT_B64=`openssl enc -base64 -A -in $TEMPDIR/my-post-configuration-script`

# initialize body for the POST request
cat << EOM > $TEMPDIR/scripts.json
{
    "sztpd:scripts": {
        "script": [
            {
                "name": "my-pre-configuration-script",
                "type": "PRE-CONFIG",
                "code": "$PRE_SCRIPT_B64"
            },
            {
                "name": "my-post-configuration-script",
                "type": "POST-CONFIG",
                "code": "$POST_SCRIPT_B64"
            }
        ]
    }
}
EOM

# POST 'scripts' to running
curl -isf -X POST --data @$TEMPDIR/scripts.json -H "Content-Type:application/yang-data+json" --cacert nbi_t\
rust_chain.pem --user my-admin:my-secret https://127.0.0.1:8443/restconf/ds/ietf-datastores:running/sztpd:c\
onveyed-information > output/post_scripts.out
if [[ $? != 0 ]]; then
  echo "curl returned an error"
  exit 1
fi

# remove temp dir
rm -rf $TEMPDIR

Response:

HTTP/1.1 201 Created
Content-Length: 0
Date: Wed, 22 Jan 2025 07:16:24 GMT
Server: <redacted>

3.4.3 Defining a Configuration for Bootstrapping Devices

Set the device-specific configuration the device should run. The example configuration is nonsensical, but note that it is encoded in XML because, presumably, this device’s native configuration is in XML. The configuration may be encoded in any format knwon to the device.

Request:

=================================== NOTE: '\' line wrapping per RFC 8792 ===================================

#!/bin/sh

# get a temp dir
TEMPDIR=`mktemp -d`

# initialize body for the POST request
cat << EOM > $TEMPDIR/my-configuration
<top xmlns="https:/example.com/config">
  <any-xml-content-okay/>
</top>
EOM
CONFIG_B64=`openssl enc -base64 -A -in $TEMPDIR/my-configuration`

cat << EOM > $TEMPDIR/configurations.json
{
    "sztpd:configurations": {
        "configuration": [
            {
                "name": "my-configuration",
                "handling": "merge",
                "config-data": "$CONFIG_B64"
            }
        ]
    }
}
EOM

# POST 'configurations.json' to running
curl -i -X POST --data @$TEMPDIR/configurations.json -H "Content-Type:application/yang-data+json" --cacert \
nbi_trust_chain.pem --user my-admin:my-secret https://127.0.0.1:8443/restconf/ds/ietf-datastores:running/sz\
tpd:conveyed-information > output/post_configurations.out
if [[ $? != 0 ]]; then
  echo "curl returned an error"
  exit 1
fi

# remove temp dir
rm -rf $TEMPDIR

Response:

HTTP/1.1 201 Created
Content-Length: 0
Date: Wed, 22 Jan 2025 07:16:24 GMT
Server: <redacted>

3.4.4 Defining an Onboarding Response

Configure an “onboarding-response” referencing all of the above:

Request:

=================================== NOTE: '\' line wrapping per RFC 8792 ===================================

#!/bin/sh

# get a temp dir
TEMPDIR=`mktemp -d`

# initialize body for the POST request
cat << EOM > $TEMPDIR/responses.json
{
    "sztpd:responses": {
        "onboarding-response": [
            {
                "name": "my-onboarding-information",
                "onboarding-information": {
                    "boot-image": "my-boot-image.img",
                    "pre-configuration-script": "my-pre-configuration-script",
                    "configuration": "my-configuration",
                    "post-configuration-script": "my-post-configuration-script"
                }
            }
        ]
    }
}
EOM

# POST 'responses' to running
curl -isf -X POST --data @$TEMPDIR/responses.json -H "Content-Type:application/yang-data+json" --cacert nbi\
_trust_chain.pem --user my-admin:my-secret https://127.0.0.1:8443/restconf/ds/ietf-datastores:running > out\
put/post_responses_2.out
if [[ $? != 0 ]]; then
  echo "curl returned an error"
  exit 1
fi

# remove temp dir
rm -rf $TEMPDIR

Response:

HTTP/1.1 201 Created
Content-Length: 0
Date: Wed, 22 Jan 2025 07:16:24 GMT
Server: <redacted>

3.4.5 Configuring Device to Return the Onboarding Response

Configure the ‘response-manager’ node inside the ‘my-serial-number’ device object to return the “my-onboarding-information” respsonse. Note that a catch-all rule (i.e., one without any ‘match-criteria’ defined) tells STZPD to always return this response to this device.

Request:

=================================== NOTE: '\' line wrapping per RFC 8792 ===================================

#!/bin/sh

# get a temp dir
TEMPDIR=`mktemp -d`

# initialize body for the POST request
cat << EOM > $TEMPDIR/response-manager.json
{
    "sztpd:response-manager": {
        "matched-response": [
            {
                "name": "catch-all-response",
                "response": {
                    "conveyed-information": {
                        "via-onboarding-response": {
                            "reference": "my-onboarding-information"
                        }
                    }
                }
            }
        ]
    }
}
EOM

# POST 'response-manager' to *device*
curl -isf -X POST --data @$TEMPDIR/response-manager.json -H "Content-Type:application/yang-data+json" --cac\
ert nbi_trust_chain.pem --user my-admin:my-secret https://127.0.0.1:8443/restconf/ds/ietf-datastores:runnin\
g/sztpd:devices/device=my-serial-number > output/post_response_manager_2.out
if [[ $? != 0 ]]; then
  echo "curl returned an error"
  exit 1
fi

# remove temp dir
rm -rf $TEMPDIR

Response:

HTTP/1.1 201 Created
Content-Length: 0
Date: Wed, 22 Jan 2025 07:16:24 GMT
Server: <redacted>

3.4.6 Simulate Device Getting Onboarding Information

Note that the SBI supports both JSON and XML.

Request:

=================================== NOTE: '\' line wrapping per RFC 8792 ===================================

#!/bin/sh

# get a temp dir
TEMPDIR=`mktemp -d`

# initialize the 'input' node for the RPC
cat << EOM > $TEMPDIR/input.xml
<input xmlns="urn:ietf:params:xml:ns:yang:ietf-sztp-bootstrap-server">
    <hw-model>model-x</hw-model>
    <os-name>vendor-os</os-name>
    <os-version>17.3R2.1</os-version>
    <nonce>BASE64VALUE=</nonce>
</input>
EOM

# POST 'input' for the "get-bootstrapping-data" RPC resource
curl -isf -X POST --data @$TEMPDIR/input.xml -H "Content-Type:application/yang-data+xml" -H "Accept:applica\
tion/yang-data+xml" --cacert sbi_trust_chain.pem --key pki/client/end-entity/private_key.pem --cert pki/cli\
ent/end-entity/my_cert.pem --user my-serial-number:my-secret https://127.0.0.1:9443/restconf/operations/iet\
f-sztp-bootstrap-server:get-bootstrapping-data > output/rpc_get_bootstrapping_data_3.out

if [[ $? != 0 ]]; then
  echo "curl returned an error"
  exit 1
fi

# line-return needed for markdown
echo "" >> output/rpc_get_bootstrapping_data_3.out

# remove temp dir
rm -rf $TEMPDIR

Response:

=================================== NOTE: '\' line wrapping per RFC 8792 ===================================

HTTP/1.1 200 OK
Content-Type: application/yang-data+xml; charset=utf-8
Content-Length: 1649
Date: Wed, 22 Jan 2025 07:16:25 GMT
Server: <redacted>

<?xml version="1.0" ?>
<output xmlns="urn:ietf:params:xml:ns:yang:ietf-sztp-bootstrap-server">
  <conveyed-information>MIIEXgYLKoZIhvcNAQkQASqgggRNBIIESTw/eG1sIHZlcnNpb249IjEuMCIgPz4KPG9uYm9hcmRpbmctaW5\
mb3JtYXRpb24geG1sbnM9InVybjppZXRmOnBhcmFtczp4bWw6bnM6eWFuZzppZXRmLXN6dHAtY29udmV5ZWQtaW5mbyI+CiAgPGJvb3QtaW\
1hZ2U+CiAgICA8b3MtbmFtZT5Gb29CYXJPUzwvb3MtbmFtZT4KICAgIDxvcy12ZXJzaW9uPjEuMi4zPC9vcy12ZXJzaW9uPgogICAgPGRvd\
25sb2FkLXVyaT5odHRwczovL2V4YW1wbGUuY29tL215LWJvb3QtaW1hZ2UuaW1nPC9kb3dubG9hZC11cmk+CiAgICA8aW1hZ2UtdmVyaWZp\
Y2F0aW9uPgogICAgICA8aGFzaC1hbGdvcml0aG0geG1sbnM6aWV0Zi1zenRwLWNvbnZleWVkLWluZm89InVybjppZXRmOnBhcmFtczp4bWw\
6bnM6eWFuZzppZXRmLXN6dHAtY29udmV5ZWQtaW5mbyI+aWV0Zi1zenRwLWNvbnZleWVkLWluZm86c2hhLTI1NjwvaGFzaC1hbGdvcml0aG\
0+CiAgICAgIDxoYXNoLXZhbHVlPjY0Ojc4OjA5OmVmOmM0OmMyOjNhOjRiOjViOmFlOmRkOmU5OjkxOmE4OjYxOjYwOjc2OmRiOjYyOjk5O\
jE4Ojk0OjE4OjlhOjk2OjE0OjhmOjNiOmQzOjgzOmZmOjdlPC9oYXNoLXZhbHVlPgogICAgPC9pbWFnZS12ZXJpZmljYXRpb24+CiAgPC9i\
b290LWltYWdlPgogIDxwcmUtY29uZmlndXJhdGlvbi1zY3JpcHQ+SXk5aWFXNHZZbUZ6YUFwbFkyaHZJQ0pwYm5OcFpHVWdkR2hsSUhCeVp\
TMWpiMjVtYVdkMWNtRjBhVzl1TFhOamNtbHdkQzR1TGlJSzwvcHJlLWNvbmZpZ3VyYXRpb24tc2NyaXB0PgogIDxjb25maWd1cmF0aW9uLW\
hhbmRsaW5nPm1lcmdlPC9jb25maWd1cmF0aW9uLWhhbmRsaW5nPgogIDxjb25maWd1cmF0aW9uPlBIUnZjQ0I0Yld4dWN6MGlhSFIwY0hNN\
kwyVjRZVzF3YkdVdVkyOXRMMk52Ym1acFp5SStDaUFnUEdGdWVTMTRiV3d0WTI5dWRHVnVkQzF2YTJGNUx6NEtQQzkwYjNBK0NnPT08L2Nv\
bmZpZ3VyYXRpb24+CiAgPHBvc3QtY29uZmlndXJhdGlvbi1zY3JpcHQ+SXk5aWFXNHZZbUZ6YUFwbFkyaHZJQ0pwYm5OcFpHVWdkR2hsSUh\
CdmMzUXRZMjl1Wm1sbmRYSmhkR2x2YmkxelkzSnBjSFF1TGk0aUNnPT08L3Bvc3QtY29uZmlndXJhdGlvbi1zY3JpcHQ+Cjwvb25ib2FyZG\
luZy1pbmZvcm1hdGlvbj4K</conveyed-information>
</output>

3.4.7 Simulate Device Posting a Progress Report

In addition to RFC 8572 enabling a device to obtain bootstrapping data, it also enables a device to report progress, enabling a bootstrap server to:

1. learn of any issues preventing bootstrapping from succeeding.
2. learn of any dynamically-generated SSH host keys and/or TLS certificates, such as may be needed to authenticate the device via other protocols (e.g., NETCONF, RESTCONF, etc.)

Note that the SBI supports both JSON and XML.

Request:

=================================== NOTE: '\' line wrapping per RFC 8792 ===================================

#!/bin/sh

# get a temp dir
TEMPDIR=`mktemp -d`

# initialize the 'input' node for the RPC
cat << EOM > $TEMPDIR/input.xml
<input xmlns="urn:ietf:params:xml:ns:yang:ietf-sztp-bootstrap-server">
    <progress-type>bootstrap-complete</progress-type>
    <message>example message</message>
    <ssh-host-keys>
        <ssh-host-key>
            <algorithm>ssh-rsa</algorithm>
            <key-data>BASE64VALUE=</key-data>
        </ssh-host-key>
        <ssh-host-key>
            <algorithm>rsa-sha2-256</algorithm>
            <key-data>BASE64VALUE=</key-data>
        </ssh-host-key>
    </ssh-host-keys>
    <trust-anchor-certs>
        <trust-anchor-cert>BASE64VALUE=</trust-anchor-cert>
    </trust-anchor-certs>
</input>
EOM

# POST it to the "report-progress" RPC resource
curl -isf -X POST --data @$TEMPDIR/input.xml -H "Content-Type:application/yang-data+xml" --cacert sbi_trust\
_chain.pem --key pki/client/end-entity/private_key.pem --cert pki/client/end-entity/my_cert.pem --user my-s\
erial-number:my-secret https://127.0.0.1:9443/restconf/operations/ietf-sztp-bootstrap-server:report-progres\
s > output/rpc_report_progress.out

# cleanup
rm -f $TEMPDIR/input.xml

Response:

HTTP/1.1 204 No Content
Date: Wed, 22 Jan 2025 07:16:25 GMT
Server: <redacted>

3.4.8 Delete Onboarding Information

Now delete all of the onboarding config to get back to baseline (not that it matters). Note that the configuration is removed in the opposite order to avoid SZTPD throwing a validation error due to dangling references.

Request:

=================================== NOTE: '\' line wrapping per RFC 8792 ===================================

#!/bin/sh

# These are removed in opposite order to avoid dangling reference validation errors.

curl -isf -X DELETE --cacert nbi_trust_chain.pem --user my-admin:my-secret https://127.0.0.1:8443/restconf/\
ds/ietf-datastores:running/sztpd:devices/device=my-serial-number/response-manager > output/delete_onboardin\
g_info.out
if [[ $? != 0 ]]; then
  echo "curl returned an error"
  exit 1
fi

curl -isf -X DELETE --cacert nbi_trust_chain.pem --user my-admin:my-secret https://127.0.0.1:8443/restconf/\
ds/ietf-datastores:running/sztpd:responses >> output/delete_onboarding_info.out
if [[ $? != 0 ]]; then
  echo "curl returned an error"
  exit 1
fi

curl -isf -X DELETE --cacert nbi_trust_chain.pem --user my-admin:my-secret https://127.0.0.1:8443/restconf/\
ds/ietf-datastores:running/sztpd:conveyed-information/boot-images >> output/delete_onboarding_info.out
if [[ $? != 0 ]]; then
  echo "curl returned an error"
  exit 1
fi

curl -isf -X DELETE --cacert nbi_trust_chain.pem --user my-admin:my-secret https://127.0.0.1:8443/restconf/\
ds/ietf-datastores:running/sztpd:conveyed-information/scripts >> output/delete_onboarding_info.out
if [[ $? != 0 ]]; then
  echo "curl returned an error"
  exit 1
fi

curl -isf -X DELETE --cacert nbi_trust_chain.pem --user my-admin:my-secret https://127.0.0.1:8443/restconf/\
ds/ietf-datastores:running/sztpd:conveyed-information/configurations >> output/delete_onboarding_info.out
if [[ $? != 0 ]]; then
  echo "curl returned an error"
  exit 1
fi

Response:

HTTP/1.1 204 No Content
Date: Wed, 22 Jan 2025 07:16:25 GMT
Server: <redacted>

HTTP/1.1 204 No Content
Date: Wed, 22 Jan 2025 07:16:25 GMT
Server: <redacted>

HTTP/1.1 204 No Content
Date: Wed, 22 Jan 2025 07:16:25 GMT
Server: <redacted>

HTTP/1.1 204 No Content
Date: Wed, 22 Jan 2025 07:16:25 GMT
Server: <redacted>

HTTP/1.1 204 No Content
Date: Wed, 22 Jan 2025 07:16:25 GMT
Server: <redacted>

3.5.1 View Device’s Bootstrapping Log

Notice how the “GET” on yang-library resource, and all of the ‘get-bootstrapping-data’ RPC requests, and the ‘report-progress’ RPC request, from above all appear below.

Request:

=================================== NOTE: '\' line wrapping per RFC 8792 ===================================

#!/bin/sh

curl -isf -H "Accept:application/yang-data+json" --cacert nbi_trust_chain.pem --user my-admin:my-secret htt\
ps://127.0.0.1:8443/restconf/ds/ietf-datastores:operational/sztpd:devices/device=my-serial-number/bootstrap\
ping-log > output/get_bootstrapping_log.out

if [[ $? != 0 ]]; then
  echo "curl returned an error"
  exit 1
fi

# FIXME: is YANGcore not having a closing LR?
echo "\n" >> output/get_bootstrapping_log.out

Response:

HTTP/1.1 200 OK
Content-Type: application/yang-data+json; charset=utf-8
Content-Length: 3841
Date: Wed, 22 Jan 2025 07:16:25 GMT
Server: <redacted>

{
  "sztpd:bootstrapping-log": {
    "bootstrapping-log-record": [
      {
        "timestamp": "2025-01-22T07:16:22Z",
        "source-ip": "127.0.0.1",
        "method": "POST",
        "path": "/restconf/operations/ietf-sztp-bootstrap-server:get-bootstrapping-data",
        "return-code": 404,
        "error-returned": {
          "ietf-restconf:errors": {
            "error": [
              {
                "error-type": "application",
                "error-tag": "data-missing",
                "error-message": "No responses configured."
              }
            ]
          }
        },
        "event-details": {
          "get-bootstrapping-data-event": {
            "passed-input": {
              "hw-model": "model-x",
              "os-name": "vendor-os",
              "os-version": "17.3R2.1",
              "nonce": "BASE64VALUE="
            },
            "selected-response": "no-responses-configured"
          }
        }
      },
      {
        "timestamp": "2025-01-22T07:16:23Z",
        "source-ip": "127.0.0.1",
        "method": "POST",
        "path": "/restconf/operations/ietf-sztp-bootstrap-server:get-bootstrapping-data",
        "return-code": 200,
        "event-details": {
          "get-bootstrapping-data-event": {
            "passed-input": {
              "hw-model": "model-x",
              "os-name": "vendor-os",
              "os-version": "17.3R2.1",
              "nonce": "BASE64VALUE="
            },
            "selected-response": "catch-all-response",
            "response-details": {
              "managed-response": {
                "conveyed-information": {
                  "via-redirect-response": {
                    "referenced-definition": "my-redirect-information"
                  }
                }
              }
            }
          }
        }
      },
      {
        "timestamp": "2025-01-22T07:16:25Z",
        "source-ip": "127.0.0.1",
        "method": "POST",
        "path": "/restconf/operations/ietf-sztp-bootstrap-server:get-bootstrapping-data",
        "return-code": 200,
        "event-details": {
          "get-bootstrapping-data-event": {
            "passed-input": {
              "hw-model": "model-x",
              "os-name": "vendor-os",
              "os-version": "17.3R2.1",
              "nonce": "BASE64VALUE="
            },
            "selected-response": "catch-all-response",
            "response-details": {
              "managed-response": {
                "conveyed-information": {
                  "via-onboarding-response": {
                    "referenced-definition": "my-onboarding-information"
                  }
                }
              }
            }
          }
        }
      },
      {
        "timestamp": "2025-01-22T07:16:25Z",
        "source-ip": "127.0.0.1",
        "method": "POST",
        "path": "/restconf/operations/ietf-sztp-bootstrap-server:report-progress",
        "return-code": 204,
        "event-details": {
          "report-progress-event": {
            "passed-input": {
              "progress-type": "bootstrap-complete",
              "message": "example message",
              "ssh-host-keys": {
                "ssh-host-key": [
                  {
                    "algorithm": "ssh-rsa",
                    "key-data": "BASE64VALUE="
                  },
                  {
                    "algorithm": "rsa-sha2-256",
                    "key-data": "BASE64VALUE="
                  }
                ]
              },
              "trust-anchor-certs": {
                "trust-anchor-cert": [
                  "BASE64VALUE="
                ]
              }
            },
            "dynamic-callout": {
              "no-callout-configured": [
                null
              ]
            }
          }
        }
      }
    ]
  }
}

3.5.2 View YANGcore’s Audit Log

Notice how all the commands run above appear below. The audit log captures all interactions on both the NBI (management) and SBI (bootstapping) interfaces. See the ‘get-bootstrapping-data’ and ‘report-process’ log entries for examples of the SBI interactions.

Request:

=================================== NOTE: '\' line wrapping per RFC 8792 ===================================

#!/bin/sh

# fetch data to file
curl -isf -H "Accept:application/yang-data+json" --cacert nbi_trust_chain.pem --user my-admin:my-secret htt\
ps://127.0.0.1:8443/restconf/ds/ietf-datastores:operational/yangcore:audit-log > output/get_audit_log.out

# ensure no error
if [[ $? != 0 ]]; then
  echo "curl returned an error"
  exit 1
fi

# FIXME: is YANGcore not having a closing LR?
echo "\n" >> output/get_audit_log.out

Response:

=================================== NOTE: '\' line wrapping per RFC 8792 ===================================

HTTP/1.1 200 OK
Content-Type: application/yang-data+json; charset=utf-8
Content-Length: 5824
Date: Wed, 22 Jan 2025 07:16:25 GMT
Server: <redacted>

{
  "yangcore:audit-log": {
    "audit-log-record": [
      {
        "timestamp": "2025-01-22T07:16:17Z",
        "source-ip": "127.0.0.1",
        "host": "127.0.0.1:8080",
        "method": "PUT",
        "path": "/restconf/ds/ietf-datastores:running",
        "outcome": "success",
        "comment": "No authorization required for fresh installs."
      },
      {
        "timestamp": "2025-01-22T07:16:22Z",
        "source-ip": "127.0.0.1",
        "host": "127.0.0.1:9443",
        "method": "POST",
        "path": "/restconf/operations/ietf-sztp-bootstrap-server:get-bootstrapping-data",
        "outcome": "success"
      },
      {
        "timestamp": "2025-01-22T07:16:23Z",
        "source-ip": "127.0.0.1",
        "host": "127.0.0.1:8443",
        "method": "POST",
        "path": "/restconf/ds/ietf-datastores:running/sztpd:conveyed-information",
        "outcome": "success"
      },
      {
        "timestamp": "2025-01-22T07:16:23Z",
        "source-ip": "127.0.0.1",
        "host": "127.0.0.1:8443",
        "method": "POST",
        "path": "/restconf/ds/ietf-datastores:running",
        "outcome": "success"
      },
      {
        "timestamp": "2025-01-22T07:16:23Z",
        "source-ip": "127.0.0.1",
        "host": "127.0.0.1:8443",
        "method": "POST",
        "path": "/restconf/ds/ietf-datastores:running/sztpd:devices/device=my-serial-number",
        "outcome": "success"
      },
      {
        "timestamp": "2025-01-22T07:16:23Z",
        "source-ip": "127.0.0.1",
        "host": "127.0.0.1:9443",
        "method": "POST",
        "path": "/restconf/operations/ietf-sztp-bootstrap-server:get-bootstrapping-data",
        "outcome": "success"
      },
      {
        "timestamp": "2025-01-22T07:16:23Z",
        "source-ip": "127.0.0.1",
        "host": "127.0.0.1:8443",
        "method": "DELETE",
        "path": "/restconf/ds/ietf-datastores:running/sztpd:devices/device=my-serial-number/response-manage\
r",
        "outcome": "success"
      },
      {
        "timestamp": "2025-01-22T07:16:23Z",
        "source-ip": "127.0.0.1",
        "host": "127.0.0.1:8443",
        "method": "DELETE",
        "path": "/restconf/ds/ietf-datastores:running/sztpd:responses",
        "outcome": "success"
      },
      {
        "timestamp": "2025-01-22T07:16:23Z",
        "source-ip": "127.0.0.1",
        "host": "127.0.0.1:8443",
        "method": "DELETE",
        "path": "/restconf/ds/ietf-datastores:running/sztpd:conveyed-information/bootstrap-servers",
        "outcome": "success"
      },
      {
        "timestamp": "2025-01-22T07:16:24Z",
        "source-ip": "127.0.0.1",
        "host": "127.0.0.1:8443",
        "method": "POST",
        "path": "/restconf/ds/ietf-datastores:running/sztpd:conveyed-information",
        "outcome": "success"
      },
      {
        "timestamp": "2025-01-22T07:16:24Z",
        "source-ip": "127.0.0.1",
        "host": "127.0.0.1:8443",
        "method": "POST",
        "path": "/restconf/ds/ietf-datastores:running/sztpd:conveyed-information",
        "outcome": "success"
      },
      {
        "timestamp": "2025-01-22T07:16:24Z",
        "source-ip": "127.0.0.1",
        "host": "127.0.0.1:8443",
        "method": "POST",
        "path": "/restconf/ds/ietf-datastores:running/sztpd:conveyed-information",
        "outcome": "success"
      },
      {
        "timestamp": "2025-01-22T07:16:24Z",
        "source-ip": "127.0.0.1",
        "host": "127.0.0.1:8443",
        "method": "POST",
        "path": "/restconf/ds/ietf-datastores:running",
        "outcome": "success"
      },
      {
        "timestamp": "2025-01-22T07:16:24Z",
        "source-ip": "127.0.0.1",
        "host": "127.0.0.1:8443",
        "method": "POST",
        "path": "/restconf/ds/ietf-datastores:running/sztpd:devices/device=my-serial-number",
        "outcome": "success"
      },
      {
        "timestamp": "2025-01-22T07:16:24Z",
        "source-ip": "127.0.0.1",
        "host": "127.0.0.1:9443",
        "method": "POST",
        "path": "/restconf/operations/ietf-sztp-bootstrap-server:get-bootstrapping-data",
        "outcome": "success"
      },
      {
        "timestamp": "2025-01-22T07:16:25Z",
        "source-ip": "127.0.0.1",
        "host": "127.0.0.1:8443",
        "method": "DELETE",
        "path": "/restconf/ds/ietf-datastores:running/sztpd:devices/device=my-serial-number/response-manage\
r",
        "outcome": "success"
      },
      {
        "timestamp": "2025-01-22T07:16:25Z",
        "source-ip": "127.0.0.1",
        "host": "127.0.0.1:8443",
        "method": "DELETE",
        "path": "/restconf/ds/ietf-datastores:running/sztpd:responses",
        "outcome": "success"
      },
      {
        "timestamp": "2025-01-22T07:16:25Z",
        "source-ip": "127.0.0.1",
        "host": "127.0.0.1:8443",
        "method": "DELETE",
        "path": "/restconf/ds/ietf-datastores:running/sztpd:conveyed-information/boot-images",
        "outcome": "success"
      },
      {
        "timestamp": "2025-01-22T07:16:25Z",
        "source-ip": "127.0.0.1",
        "host": "127.0.0.1:8443",
        "method": "DELETE",
        "path": "/restconf/ds/ietf-datastores:running/sztpd:conveyed-information/scripts",
        "outcome": "success"
      },
      {
        "timestamp": "2025-01-22T07:16:25Z",
        "source-ip": "127.0.0.1",
        "host": "127.0.0.1:8443",
        "method": "DELETE",
        "path": "/restconf/ds/ietf-datastores:running/sztpd:conveyed-information/configurations",
        "outcome": "success"
      },
      {
        "timestamp": "2025-01-22T07:16:25Z",
        "source-ip": "127.0.0.1",
        "host": "127.0.0.1:9443",
        "method": "POST",
        "path": "/restconf/operations/ietf-sztp-bootstrap-server:report-progress",
        "outcome": "success"
      }
    ]
  }
}

4.2.1 Example: POST-ing a Matched-Response after Another

Assuming a device’s “response-manager” contains the ordered list of “matched-response” entries: “resp1”, “resp2”, and “resp3”, then the command:

$ cat matched-response.json
{
  "sztpd:matched-response": [
    {
      'name': 'new',
      'response': {
        'none': [None]
      }
    }
  ]
}

$ curl -i -X POST --data @matched-response.json -H "Content-Type:application/yang-data+json" \
http://127.0.0.1:8080/restconf/ds/ietf-datastores:running/sztpd:devices/device=my-serial\
-number/response-manager?insert=after&point=/sztpd:devices/device=my-serial-number/respo\
nse-manager/matched-response=resp1

would result in the ordered list of entries: “resp1”, “new”, “resp2”, and “resp3”.

4.2.2 Example: PUT-ing an entry before another entry

Assuming a redirect-response contains the ordered list of “bootstrap-server” entries: “bs1”, “bs2”, and “bs3”, then the command:

$ cat bootstrap-server.json
{
  "sztpd:bootstrap-server": [
    "bs-3"
  ]
}

$ curl -i -X PUT --data @bootstrap-server.json -H "Content-Type:application/yang-data+json" \
http://127.0.0.1:8080/restconf/ds/ietf-datastores:running/sztpd:conveyed-information-re\
sponses/redirect-response=my-redirect-information/redirect-information/bootstrap\
-server=bs3?insert=before&point=/sztpd:responses/redirect-informat\
ion-response=my-redirect-information/redirect-information/bootstrap-server=bs2

would result in the ordered list of entries: “bs1”, “bs3”, and “bs2”.

4.3.1 Example: POST-ing a Download-URI after Another

Assuming the configured “download-uri” leaf-list contains values as follows:

{
  "sztpd:download-uri" : [
    https://cdn1.example.com/path/to/image/file,
    https://cdn2.example.com/path/to/image/file,
    https://cdn3.example.com/path/to/image/file
  ]
}

then the command:

$ cat download-uri.json
{
  "sztpd:download-uri": [
    https://new4.example.com/path/to/image/file
  ]
}

$ curl -i -X POST --data @download-uri.json -H "Content-Type:application/yang-data+json" \
http://127.0.0.1:8080/restconf/ds/ietf-datastores:running/sztpd:boot-images/boot-ima\
ge=vendoros-19.2r1b6.img?insert=after&point=/sztpd:boot-images/boot-image=vendoros-1\
9.2r1b6.img/download-uri=https%3A%2F%2Fcdn1.example.com%2Fpath%2Fto%2Fimage%2Ffile

would result in the list of entries:

{
  "sztpd:download-uri" : [
    https://cdn1.example.com/path/to/image/file,
    https://new4.example.com/path/to/image/file,
    https://cdn2.example.com/path/to/image/file,
    https://cdn3.example.com/path/to/image/file
  ]
}

4.3.2 Example: PUT-ing a Download-URI after Another

Assuming the configured “download-uri” leaf-list contains values as follows:

{
  "sztpd:download-uri" : [
    https://cdn1.example.com/path/to/image/file,
    https://new4.example.com/path/to/image/file,
    https://cdn2.example.com/path/to/image/file,
    https://cdn3.example.com/path/to/image/file
  ]
}

then the command:

$ cat download-uri.json
{
  "sztpd:download-uri": [
    https://new4.example.com/path/to/image/file
  ]
}

$ curl -i -X POST --data @download-uri.json -H "Content-Type:application/yang-data+json" \
http://127.0.0.1:8080/restconf/ds/ietf-datastores:running/sztpd:boot-images/boot-ima\
ge=vendoros-19.2r1b6.img/download-uri=https%3A%2F%2Fnew4.example.com%2Fpath%2Fto%2Fimage%\
2Ffile?insert=before&point=/sztpd:boot-images/boot-image=vendoros-19.2r1b6.img/downl\
oad-uri=https%3A%2F%2Fcdn3.example.com%2Fpath%2Fto%2Fimage%2Ffile

would result in the list of entries:

{
  "sztpd:download-uri" : [
    https://cdn1.example.com/path/to/image/file,
    https://cdn2.example.com/path/to/image/file,
    https://new4.example.com/path/to/image/file,
    https://cdn3.example.com/path/to/image/file
  ]
}

5.4.1 /ietf-yang-library:yang-library

The top-level ‘ietf-yang-library:yang-library’ node, which is read-only (see “ro” in the NBI Complete Tree Diagram) defines all of the YANG modules implemented by the Northbound interface. The YANG Library is formally defined in RFC 8525.

5.4.2 /sztpd:conveyed-information

The top-level ‘sztpd:conveyed-information’ node groups data described as being “conveyed information” (see Section 3.1 in RFC 8572).

This information includes:

• boot-images
• bootstrapping servers
• configurations
• scripts

These are convered in the following subsections.

  +--rw conveyed-information
     +--rw boot-images
        +--rw boot-image* [name]
           +--rw name                  string
           +--rw os-name               string
           +--rw os-version            string
           +--rw download-uri*         inet:uri
           +--rw image-verification* [hash-algorithm]
              +--rw hash-algorithm    identityref
              +--rw hash-value        yang:hex-string

  +--rw conveyed-information
     +--rw bootstrap-servers
        +--rw bootstrap-server* [name]
           +--rw name            string
           +--rw address         inet:host
           +--rw port?           inet:port-number
           +--rw trust-anchor?   ct:trust-anchor-cert-cms

  +--rw conveyed-information
     +--rw configurations
        +--rw configuration* [name]
           +--rw name           string
           +--rw handling?      enumeration
           +--rw config-data?   binary
           +--rw media-type?    enumeration

  +--rw conveyed-information
     +--rw scripts
        +--rw script* [name]
           +--rw name    string
           +--rw type    enumeration
           +--rw code    sztp-info:script

5.4.3 /sztpd:device-types

The top-level ‘sztpd:device-types’ node, which is read-write (see “rw” in the tree diagram) contains a list of “device-type” nodes.

The ‘device-type’ node describes a type of device, and is used when replying to a bootstrapping device. Each device-type node can indicate if bootstrapping devices must present an identity certificate (e.g., an IDevID) and, if so, which certificate in the “/ietf:truststore” is used to validate the device’s certificate.

Each device-type node can also indicate how to test the ownership of a device, which is implemented as a dynamic callout.

Device-type nodes are referenced by device nodes, as seen in /sztpd:devices.

The following tree diagram illustrates the NBI used for configuring ‘device’ records.

=================================== NOTE: '\' line wrapping per RFC 8792 ===================================

  +--rw device-types
     +--rw device-type* [name]
        +--rw name                       string
        +--rw identity-certificates!
        |  +--rw verification
        |  |  +--rw central-truststore-reference {ts:certificates}?
        |  |     +--rw certificate-bag?   ts:central-certificate-bag-ref {central-truststore-supported,cert\
ificates}?
        |  |     +--rw certificate?       ts:central-certificate-ref {central-truststore-supported,certific\
ates}?
        |  +--rw serial-number-extraction?   identityref
        +--rw ownership-authorization!
           +--rw dynamic-callout
              +--rw reference?   -> /yangcore:dynamic-callouts/dynamic-callout/name

5.4.4 /sztpd:devices

The top-level ‘sztpd:devices’ node, which is read-write (see “rw” in the tree diagram) contains a list of “device” nodes.

The ‘device’ node is used to configure the bootstrapping response for a device, and also holds bootstrapping-log for each device³. The bootstrapping log is containing in the ‘device’ object so that storage used for it will be released when the device object is deleted.

Each device must have a ‘serial-number’ and a ‘device-type’. Further, the device object must either set ‘activiation-code’ or the ‘device-type’ it points to must set the ‘identity-certificates’ node. The device object also has a ‘response-manager’ containing a list of ‘matched-response’ rules, which are processed in order until a match is found. Note that if the matched-response contains no ‘match-criteria’ then it automatically matches. Otherwise, all of match-criteria must evaluate to true for a match to occur. Once a match occurs, the associated ‘response’ to selected.

Currently, responses are limited to just returning the “conveyed information” artifact, described in Section 3.1 or RFC 8752. SZTPD doesn’t yet return to bootstrapping devices either the “owner certificate” or “ownership voucher” artifacts. This means that bootstrapping devices must “trust” the SZTPD bootstrap server, since it does not ever return signed artifacts.

The following tree diagram illustrates the NBI used for configuring ‘device’ records.

=================================== NOTE: '\' line wrapping per RFC 8792 ===================================

  +--rw devices
     +--rw device* [serial-number]
        +--rw serial-number           string
        +--rw device-type             -> /device-types/device-type/name
        +--rw activation-code?        ianach:crypt-hash
        +--rw response-manager
        |  +--rw matched-response* [name]
        |     +--rw name              string
        |     +--rw match-criteria!
        |     |  +--rw match* [key]
        |     |     +--rw key              string
        |     |     +--rw not?             empty
        |     |     +--rw (test-type)
        |     |        +--:(present)
        |     |        |  +--rw present?   empty
        |     |        +--:(value)
        |     |        |  +--rw value?     string
        |     |        +--:(regex)
        |     |           +--rw regex?     string
        |     +--rw response
        |        +--rw reporting-level?              enumeration
        |        +--rw (response-handler)
        |           +--:(none)
        |           |  +--rw none?                   empty
        |           +--:(managed-response)
        |              +--rw conveyed-information
        |                 +--rw (conveyed-information-handler)
        |                    +--:(dynamic-callout)
        |                    |  +--rw via-dynamic-callout
        |                    |     +--rw reference    -> /yangcore:dynamic-callouts/dynamic-callout/name
        |                    +--:(redirect-information)
        |                    |  +--rw via-redirect-response
        |                    |     +--rw reference    -> /responses/redirect-response/name
        |                    +--:(onboarding-information)
        |                       +--rw via-onboarding-response
        |                          +--rw reference                 -> /responses/onboarding-response/name
        |                          +--rw config-template-params
        |                             +--rw config-template-param* [key]
        |                                +--rw key      string
        |                                +--rw value    string
        +--ro bootstrapping-log
        |  +--ro bootstrapping-log-record* []
        |     +--ro timestamp         yang:date-and-time
        |     +--ro source-ip         inet:ip-address
        |     +--ro method            string
        |     +--ro path              string
        |     +--ro return-code       uint16
        |     +--ro error-returned?   <anydata>
        |     +--ro event-details
        |        +--ro (event-type)
        |           +--:(get-bootstrapping-data-event)
        |           |  +--ro get-bootstrapping-data-event
        |           |     +--ro passed-input         <anydata>
        |           |     +--ro selected-response?   union
        |           |     +--ro response-details
        |           |        +--ro (response-type)
        |           |           +--:(managed-response)
        |           |              +--ro managed-response
        |           |                 +--ro conveyed-information
        |           |                    +--ro (conveyed-information-handler)
        |           |                       +--:(dynamic-callout)
        |           |                       |  +--ro via-dynamic-callout
        |           |                       |     +--ro (result-type)?
        |           |                       |        +--:(no-callout-configured)
        |           |                       |        |  +--ro no-callout-configured?    empty
        |           |                       |        +--:(callout-configured)
        |           |                       |           +--ro name                      string
        |           |                       |           +--ro rpc-supported             identityref
        |           |                       |           +--ro callout-type              enumeration
        |           |                       |           +--ro (function-or-webhook)?
        |           |                       |              +--:(function)
        |           |                       |              |  +--ro function-details
        |           |                       |              |  |  +--ro plugin      string
        |           |                       |              |  |  +--ro function    string
        |           |                       |              |  +--ro function-results
        |           |                       |              |     +--ro (exit-status)
        |           |                       |              |        +--:(exception-thrown)
        |           |                       |              |        |  +--ro exception-thrown?   string
        |           |                       |              |        +--:(exited-normally)
        |           |                       |              |           +--ro exited-normally?    string
        |           |                       |              +--:(webhook) {yangcore:webhook-based-callouts-i\
mplemented}?
        |           |                       |                 +--ro webhook-details
        |           |                       |                 |  +--ro num-webhooks-configured    uint8
        |           |                       |                 +--ro webhook-results
        |           |                       |                    +--ro webhook* []
        |           |                       |                       +--ro name                      string
        |           |                       |                       +--ro uri                       inet:uri
        |           |                       |                       +--ro (result-type)?
        |           |                       |                          +--:(connection-error)
        |           |                       |                          |  +--ro connection-error?   string
        |           |                       |                          +--:(http-status-code)
        |           |                       |                             +--ro http-status-code    string
        |           |                       +--:(redirect-information)
        |           |                       |  +--ro via-redirect-response
        |           |                       |     +--ro referenced-definition?   string
        |           |                       +--:(onboarding-information)
        |           |                          +--ro via-onboarding-response
        |           |                             +--ro referenced-definition?   string
        |           +--:(report-progress-event)
        |              +--ro report-progress-event
        |                 +--ro passed-input       <anydata>
        |                 +--ro dynamic-callout
        |                    +--ro (result-type)?
        |                       +--:(no-callout-configured)
        |                       |  +--ro no-callout-configured?    empty
        |                       +--:(callout-configured)
        |                          +--ro name                      string
        |                          +--ro rpc-supported             identityref
        |                          +--ro callout-type              enumeration
        |                          +--ro (function-or-webhook)?
        |                             +--:(function)
        |                             |  +--ro function-details
        |                             |  |  +--ro plugin      string
        |                             |  |  +--ro function    string
        |                             |  +--ro function-results
        |                             |     +--ro (exit-status)
        |                             |        +--:(exception-thrown)
        |                             |        |  +--ro exception-thrown?   string
        |                             |        +--:(exited-normally)
        |                             |           +--ro exited-normally?    string
        |                             +--:(webhook) {yangcore:webhook-based-callouts-implemented}?
        |                                +--ro webhook-details
        |                                |  +--ro num-webhooks-configured    uint8
        |                                +--ro webhook-results
        |                                   +--ro webhook* []
        |                                      +--ro name                      string
        |                                      +--ro uri                       inet:uri
        |                                      +--ro (result-type)?
        |                                         +--:(connection-error)
        |                                         |  +--ro connection-error?   string
        |                                         +--:(http-status-code)
        |                                            +--ro http-status-code    string
        +--ro lifecycle-statistics
           +--ro nbi-access-stats
           |  +--ro created               yang:date-and-time
           |  +--ro num-times-modified    uint16
           |  +--ro last-modified         yang:date-and-time
           +--ro sbi-access-stats
              +--ro num-times-accessed    uint16
              +--ro first-accessed        yang:date-and-time
              +--ro last-accessed         yang:date-and-time

5.4.5 /sztpd:responses

The top-level ‘sztpd:responses’ node, which is read-write (see “rw” in the tree diagram) contains both a list of “redirect-response” nodes and a list of onboarding-response” nodes. These responses are returned to bootstrapping devices as follows:

• The ‘redirect-response’ node references an ordered list of [bootstrap servers][SZTPD / Bootstrap Servers].

• The ‘onboarding-response’ node references a [boot-image][SZTPD / Boot Images] object, a [pre-configuration-script][SZTPD / Scripts] object, a [configuration][SZTPD / Configurations] object, and a [post-configuration-script][SZTPD / Scripts] object.

Device nodes reference the the “responses” nodes as described in /sztpd:devices. Specifically, the ‘response’ nodes are referenced by the device’s “response-manager”.

The following tree diagram illustrates the NBI used for configuring ‘responses’ records.

  +--rw responses
     +--rw redirect-response* [name]
     |  +--rw name                    string
     |  +--rw redirect-information
     |     +--rw bootstrap-server*   -> /conveyed-information/bootstrap-servers/bootstrap-server/name
     +--rw onboarding-response* [name]
        +--rw name                      string
        +--rw onboarding-information
           +--rw boot-image?                  -> /conveyed-information/boot-images/boot-image/name
           +--rw pre-configuration-script?    -> /conveyed-information/scripts/script/name
           +--rw configuration?               -> /conveyed-information/configurations/configuration/name
           +--rw post-configuration-script?   -> /conveyed-information/scripts/script/name

6.1.1 The “get-conveyed-information” Dynamic Callout

A dynamic callout implementing the “get-conveyed-information” RPC is used to have SZTPD dynamically generate a response for a bootstrapping device. This ability is used to, e.g., support RFC 9646.

To configure SZTPD to dynamically obtain conveyed-information from an external system, a device’s “response-manager” configuration must have a “matched-response” of type “conveyed-information” with a “dynamic-callout” having the “rpc-supported” value “sztpd-rpcs:get-conveyed-information”.

    +---x get-conveyed-information
       +---w input
       |  +---w serial-number           string
       |  +---w source-ip-address       inet:ip-address
       |  +---w identity-certificate?   ct:cms
       |  +---w from-device?            <anydata>
       |  +---w opaque?                 <anydata>
       +--ro output
          +--ro conveyed-information    <anydata>

import json

def handle_get_conveyed_info_request(input, opaque):

    # show input
    print(json.dumps({"input": input, "opaque": opaque}, indent=3))

    # hardcode response
    return {
     "conveyed-information": {
        'ietf-sztp-conveyed-info:onboarding-information': {
          'boot-image': {
            'os-name': 'VendorOS',
            'os-version': '19.2r1b6',
            'download-uri': ['https://example.com/path/to/image/file'],
            'image-verification': [
              {
                'hash-algorithm': 'sha-256',
                'hash-value': 'ba:ec:cf:a5:67:82:b4:10:77:c6:67:a6:22:ab:7d:50:04:a7:8b:8f:0e:db:02:8b:f4:75:55:fb:c1:13:b2:33'
              }
            ]
          }
        }
      }
    }

{
   "input": {
      "serial-number": "my-serial-number",
      "source-ip-address": "127.0.0.1",
      "from-device": {
         "ietf-sztp-bootstrap-server:input": {
            "ietf-sztp-csr:p10-csr": "BASE64VALUE="
         }
      }
   },
   "opaque": null
}

6.1.2 The “relay-progress-report” Dynamic Callout

A dynamic callout implementing the “relay-progress-report” RPC is used to relay progress reports received from bootstrapping devices.

To configure SZTPD to relay progress reports, the “/yangcore:preferences/outbound-interactions/sztpd:relay-progress-report-callout” node must point to a “/yangcore:dynamic-callouts/dynamic-callout” having the “rpc-supported” value “sztpd-rpcs:relay-progress-report”.

    +---x relay-progress-report
       +---w input
          +---w serial-number           string
          +---w source-ip-address       inet:ip-address
          +---w identity-certificate?   ct:cms
          +---w from-device             <anydata>
          +---w opaque?                 <anydata>

import json

def relay_progress_report_function(input, opaque):

    # show input
    print(json.dumps({"input": input, "opaque": opaque}, indent=3))

    # no 'output' defined

{
   "input": {
      "serial-number": "my-serial-number",
      "source-ip-address": "127.0.0.1",
      "from-device": {
         "ietf-sztp-bootstrap-server:input": {
            "progress-type": "bootstrap-complete",
            "message": "message sent via XML",
            "ssh-host-keys": {
               "ssh-host-key": [
                  {
                     "algorithm": "ssh-rsa",
                     "key-data": "BASE64VALUE="
                  },
                  {
                     "algorithm": "rsa-sha2-256",
                     "key-data": "BASE64VALUE="
                  }
               ]
            },
            "trust-anchor-certs": {
               "trust-anchor-cert": [
                  "BASE64VALUE="
               ]
            }
         }
      }
   },
   "opaque": null
}

6.1.3 The “verify-device-ownership” Dynamic Callout

A dynamic callout implementing the “verify-device-ownership-record” RPC is used to verify the ownership for devices. Note that this callout primarily exists so that, in a multitenancy deployment, the host-level can ensure that the tenants only configure devices (i.e., serial-numbers) that belong to them.

To configure SZTPD to verify device ownership, the “ownership-authorization” node under the top-level node “/sztpd:device-types” must point to a “dynamic-callout” having the “rpc-supported” value “sztpd:verify-device-ownership”.

    +---x verify-device-ownership
       +---w input
       |  +---w tenant           string
       |  +---w serial-number*   string
       +--ro output
          +--ro verification-results
             +--ro verification-result* [serial-number]
                +--ro serial-number    string
                +--ro result           enumeration

import json

def authenticate_device_ownership(input: dict, opaque: dict):

    # show input
    print(json.dumps({"input": input, "opaque": opaque}, indent=3))

    # hardcode response
    return {
        "verification-results": {
            "verification-result": [
                {
                    "serial-number": "sn-111",
                    "result": "failure"
                },
                {
                    "serial-number": "sn-222",
                    "result": "success"
                },
                {
                    "serial-number": "sn-333",
                    "result": "success"
                }
            ]
        }
    }

{
   "input": {
     "tenant": "not-applicable",
     "serial-number": [
       "serial_number": ["sn-111", "sn-222", "sn-333"],
     ]
   },
   "opaque": null
}

7.4.1 /ietf-sztp-bootstrap-server:get-bootstrapping-data

The top-level “ietf-sztp-bootstrap-server:get-bootstrapping-data” node is an RPC (i.e., defined by a YANG “rpc” statement). This RPC is used by bootstrapping devices to obtain bootstrapping data. The “get-bootstrapping-data” RPC is formally defined in RFC 8572.

7.4.2 /ietf-sztp-bootstrap-server:report-progress

The top-level “ietf-sztp-bootstrap-server:report-progress” node is an RPC (i.e., defined by a YANG “rpc” statement). This RPC is used by bootstrapping devices to share bootstrapping progress with the bootstrapping server. The “report-progress” RPC is formally defined in RFC 8572.

7.4.3 /ietf-yang-library:yang-library

The top-level “ietf-yang-library:yang-library” node, which is read-only (see “ro” in the SBI Complete Tree Diagram) defines all of the YANG modules implemented by the Northbound interface. The YANG Library is formally defined in RFC 8525.
